Recomended
for first user iREAP POS
The iREAP POS smart cashier application now has support for the Thermal Printer iWARE IW-800 USB. With this support, you can carry out your transaction activities more flexibly, by printing a logo and receipt for your customers anywhere and anytime.
NOTE:
We recommend using a logo that has maximum width of 360 pixels
| Thermal Printer iWARE IW-800 USB | ||
|---|---|---|
| Thermal / DOT Metrix | Thermal | |
| Brand | iWARE | |
| Paper Width | 80 mm | |
| Connection | USB | |
| Paper Type | Thermal Paper | |
| Print Logo | Yes | |
| Location to save the Logo | App | |
Prepare a USB Type-C OTG adapter, then connect the printer's USB cable to the OTG adapter. Next, plug the Type-C connector into your device.
If you are already connected, open the iREAP POS application on the device that is connected to the iWARE IW-800 USB printer.
Login by entering the Username and Password that have been previously registered
On the main page, select "Setting and Parameters"

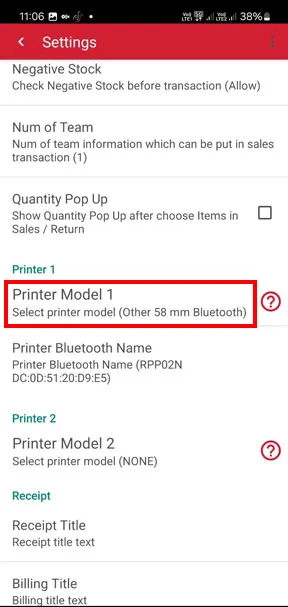

Scroll down until you find the "Printer Model 1" menu, click on the menu
Select the printer model you want to choose (iWARE IW-800 USB)
The notification will appear as shown below, click OK
After doing all the steps above, you can scroll down to provide a checklist on the "Print Logo" menu
Press the "Select Logo" menu to select the image that you want to print on the receipt when you print later. When you make a logo selection, please ensure that the size of the chosen logo image is 360px so that the logo can print well
If the printer settings have been completed, you can continue to use iReap POS to record your sales transactions. Details about recording sales transactions can be seen in the following link :
The screen will bring up a List of Sales / Return that has been made previously and the machine will automatically print the receipt along with the logo that was selected in the previous step.
iREAP POS : iREAP stand for Integrated Retail Application, is an application designed and developed to help you managed and run store operation, consists of Point of Sale / Cashier system and inventory control system.
